HYBRID HOW-TO

VAULTING CONSIDERATIONS WITH HYBRID CONTACT LENSES

Contact Lens Spectrum October 1, 2017 Vol 32, Issue October 2017 Page(s): 19
STEPHANIE RAMDASS, OD, MS

Scleral lenses have become a popular go-to among contact lens fitters to maximize visual potential in patients who suffer from corneal irregularities. We diligently inspect the fit to ensure that appropriate vaulting over the cornea is achieved during the fitting process.

Hybrid lenses, which are also a good option for abnormal corneas, require the same level of inspection by fitters; however, vaulting considerations for these applications are slightly different.

Hybrid Lens Vault Characteristics

Figure 1. Fluorescein pattern of a hybrid lens fit on a keratoconic eye. There is no apical touch centrally, with a ring of minimal clearance 360º in the periphery of the GP.
Figure 1. Fluorescein pattern of a hybrid lens fit on a keratoconic eye. There is no apical touch centrally, with a ring of minimal clearance 360º in the periphery of the GP.
Figure 2. Optic section with fluorescein instilled over the lens to highlight the front surface of the GP center. The thickness of the tear layer is approximately half the thickness of the GP portion of the hybrid lens.
Figure 2. Optic section with fluorescein instilled over the lens to highlight the front surface of the GP center. The thickness of the tear layer is approximately half the thickness of the GP portion of the hybrid lens.

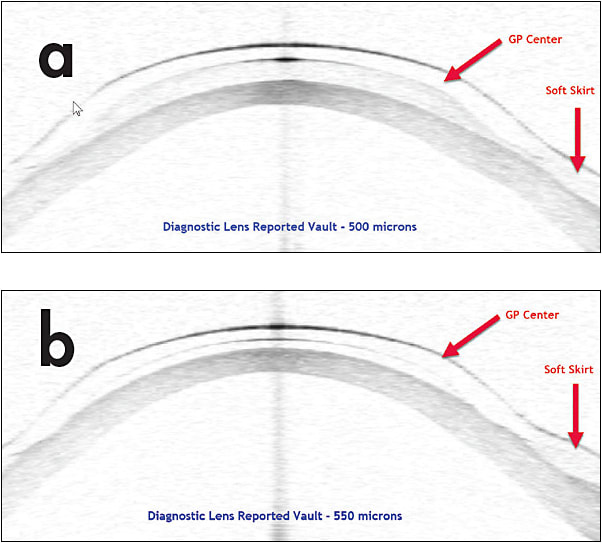

Figure 3. The same keratoconic cornea with a 500µm vault lens (a) and 550µm vault lens (b), both observed after 5 minutes. Note the excessive clearance of the 500µm vault lens and less tear layer with the the 550µm vault lens.
Figure 3. The same keratoconic cornea with a 500µm vault lens (a) and 550µm vault lens (b), both observed after 5 minutes. Note the excessive clearance of the 500µm vault lens and less tear layer with the the 550µm vault lens.
  1. The lenses are not designed to vault over the entire cornea. Currently, the only hybrid lenses that have U.S. Food and Drug Administration clearance to manage irregular corneas have an 8.5mm wide GP center. We know that the average horizontal visible iris diameter (HVID) of the human eye hovers around 11.5mm. Naturally, the GP portion will have landing or weight-bearing zones on the cornea, while the soft skirt will rest on the both the cornea and sclera. The goal is to have the GP portion of the lens vault over the entire corneal irregularity during the fitting visit (Figure 1).
  2. Hybrid lenses do settle over time. A study carried out on the settling behavior of hybrid lenses fit on keratoconic eyes revealed that hybrid lenses settled approximately 50% during the first hour of wear (Montani, 2017). This is similar to what has been reported in the literature for scleral contact lenses. However, scleral lenses settle mainly onto the bulbar conjunctiva. In my experience, I have found that a 0.5:1 ratio (or slightly greater) of tear clearance over the corneal apex to hybrid GP lens thickness is a good rule of thumb to strive for during the initial hybrid contact lens fit (Figure 2).
  3. Excessive vault often leads to a “crash” of the soft skirt. Figure 3 shows that a higher vault of a hybrid contact lens can result in reduced clearance under the lens. If you are unsure whether you have too much clearance, check the fit again after 30 to 60 minutes before finalizing an order. This action can save you a refit during a future office visit. CLS

To obtain references for this article, please visit www.clspectrum.com/references and click on document #263.

Dr. Ramdass is a clinical researcher at the Vision Research Institute (VRI) and adjunct faculty member at the Michigan College of Optometry (MCO). She has received travel funding from Paragon Vision Sciences and lecture or authorship honoraria from Wink Productions, Inc. and SynergEyes. The Vision Research Institute at MCO has received research funding from Bausch + Lomb, Paragon Vision Sciences, SynergEyes, and Art Optical.
